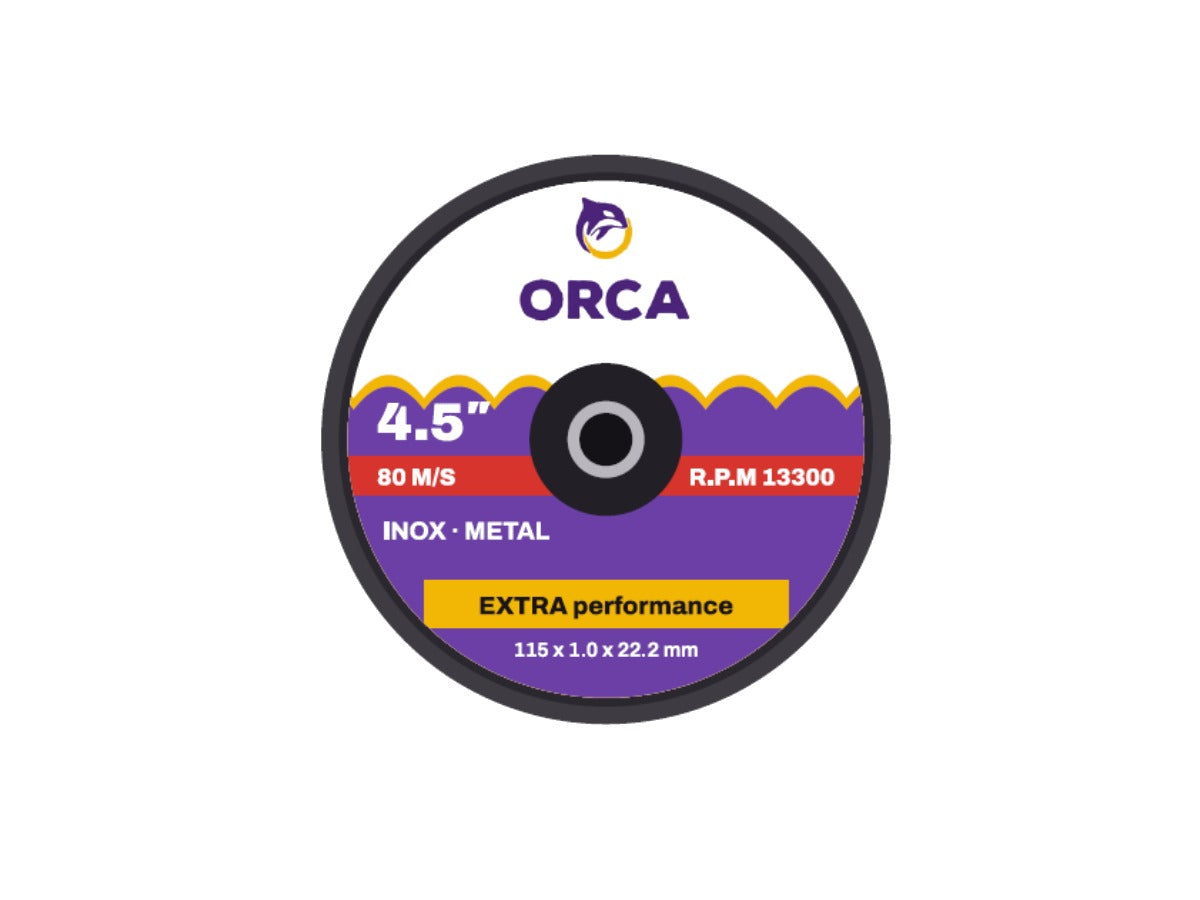

INOX · METALORC-CD-01

Cutting disc

Thin reinforced wheel for steel, stainless and non-ferrous metal, in the full range of diameters a fabrication shop reorders. Two glass-fibre layers for edge stability at full speed.

Size

100 × 1.0 mm 115 × 1.0 mm 125 × 1.2 mm 150 × 1.6 mm 180 × 1.6 mm 230 × 1.9 mm 300 × 2.8 mm 355 × 3.0 mm

Specification

Diameters	100 – 355 mm
Thickness	1.0 – 3.0 mm
Bore	22.23 mm (32 mm on 355)
Grain	Aluminium oxide
Max speed	80 m/s
Standard	EN 12413

Size range

Diameter	Thickness	Bore	Max speed
100 mm	1.0 mm	16.0 mm	15,300 rpm
115 mm	1.0 mm	22.23 mm	13,300 rpm
125 mm	1.2 mm	22.23 mm	12,200 rpm
150 mm	1.6 mm	22.23 mm	10,200 rpm
180 mm	1.6 mm	22.23 mm	8,500 rpm
230 mm	1.9 mm	22.23 mm	6,650 rpm
300 mm	2.8 mm	25.4 mm	5,100 rpm
355 mm	3.0 mm	25.4 mm	4,300 rpm
