ORC-NZ-S-01
Cutting nozzle, single layer
Diameters
28 / 32 mm
Bores
1.2 – 3.0 mm
Types
Standard, Super fast

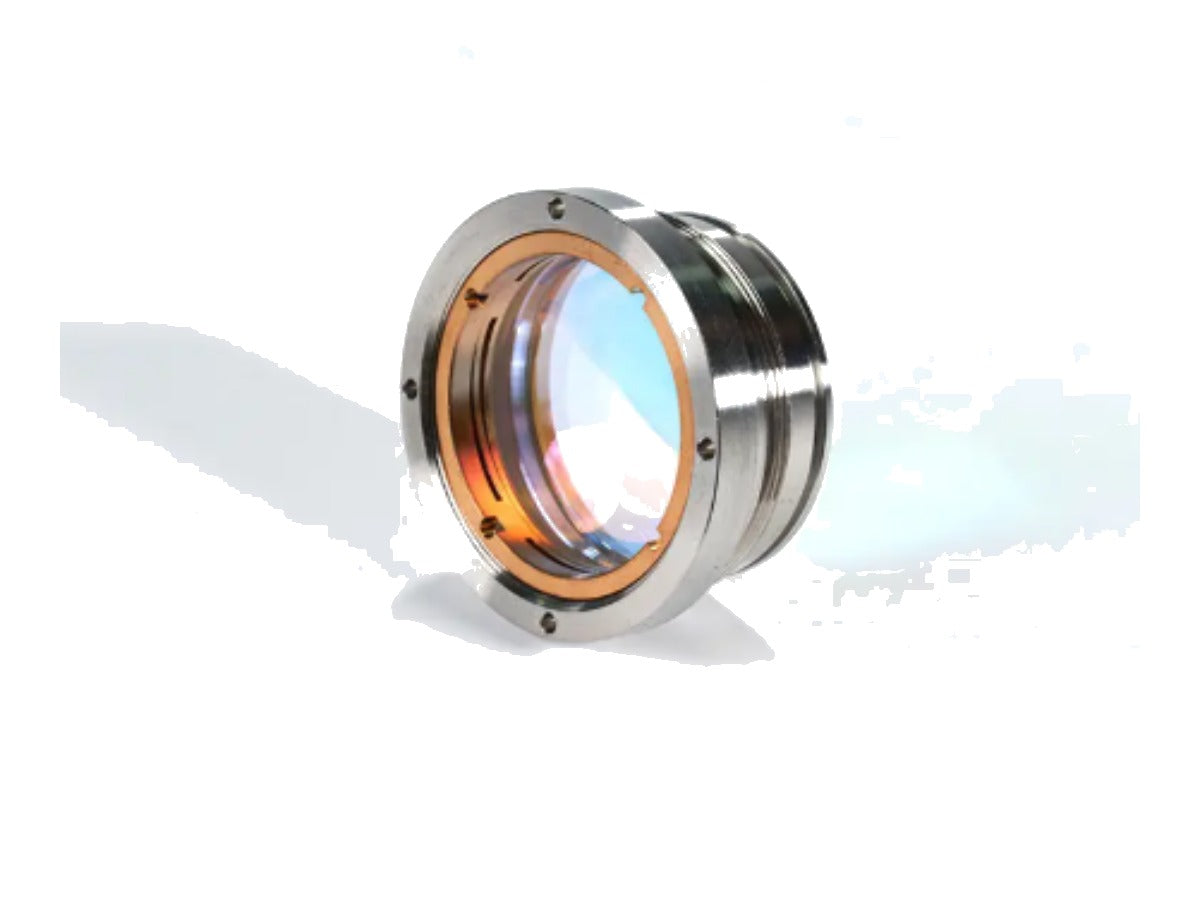

Focus lens
Fused-silica focusing lens for fibre cutting heads, coated for 1064 nm and matched to the standard focal lengths.
Specification
| Diameter | Ø 37 mm |
|---|---|
| Focal length | 200 mm |
| Power | 6 kW |
| Material | Fused silica |
| Coating | AR 1064 nm |
| Transmission | > 99.8% |
| Fits | Raytools, Bochu heads |
Often ordered together
Back to the range →
ORC-NZ-D-01
Cutting nozzle, double layer
Diameters
28 / 32 mm
Bores
1.2 – 2.5 mm
Types
Standard, Fast
ORC-CH-RT-BM-01
Fibre laser cutting head
Brand
Raytools / Bochu
Power rating
up to 60 kW
Focus
Auto-focus
