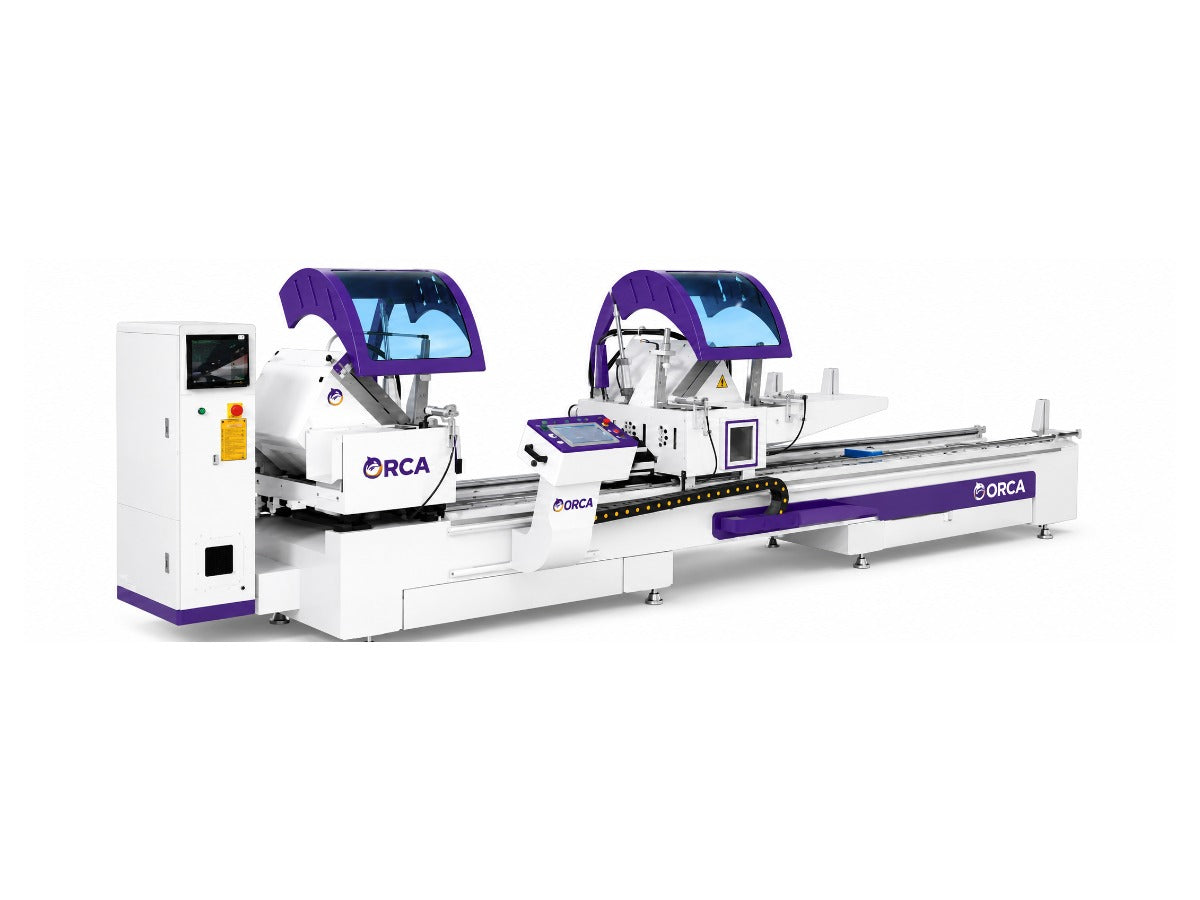

CNC double-head cutting saw
Double mitre saw for aluminium and PVC profile, cutting both ends to angle in one cycle. The first machine in a window line.
Specification
| Blade diameter | Ø 550 mm |
|---|---|
| Cutting angle | 45° – 90° – 45° |
| Cutting length | 400 – 4000 mm |
| Positioning | CNC servo |
| Feed | Hydro-pneumatic |
| Lubrication | Automatic spray |
Often ordered together
Back to the range →
ORCA-CR-240H-01

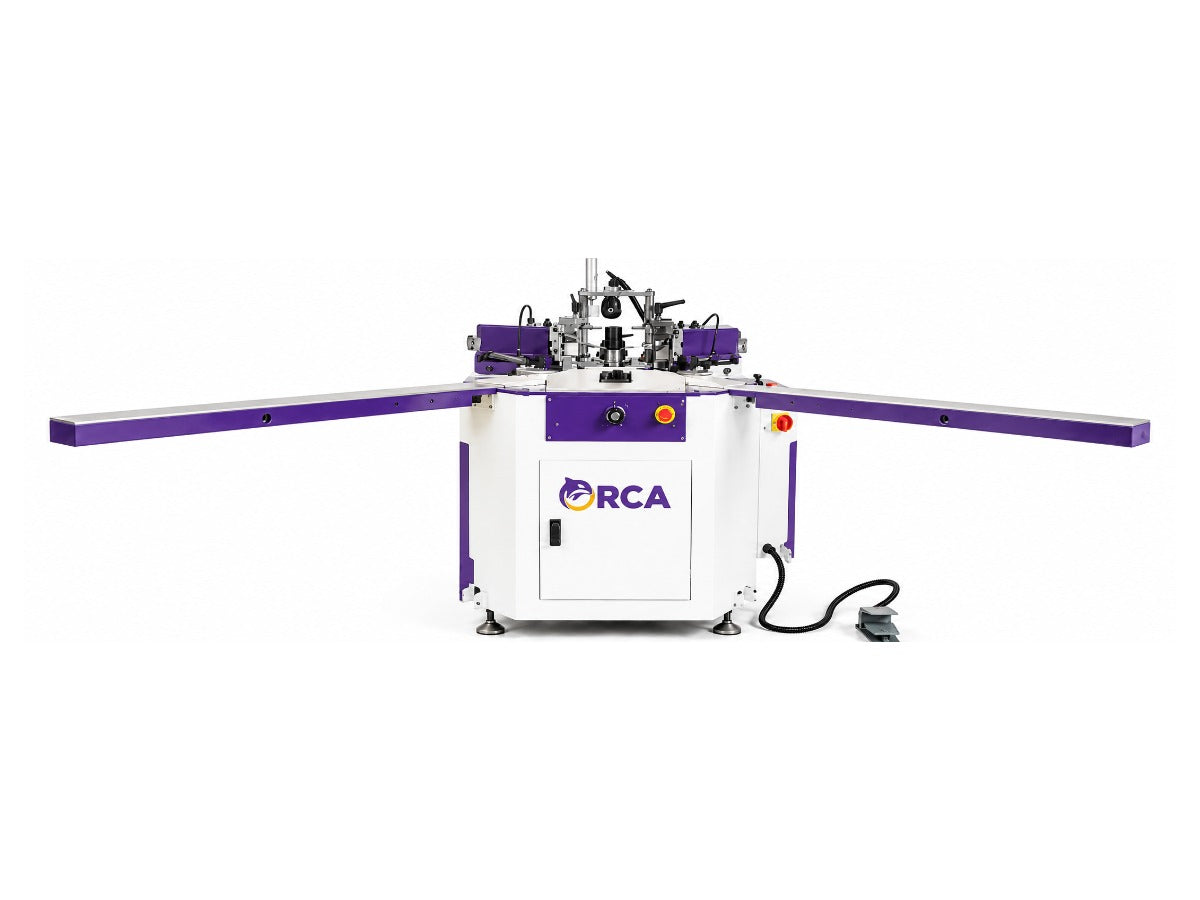

Heavy-duty corner crimping machine
Profile height
up to 240 mm
Crimping knives
3, adjustable
Squaring
Automatic clamp
ORCA-CS-S550-01

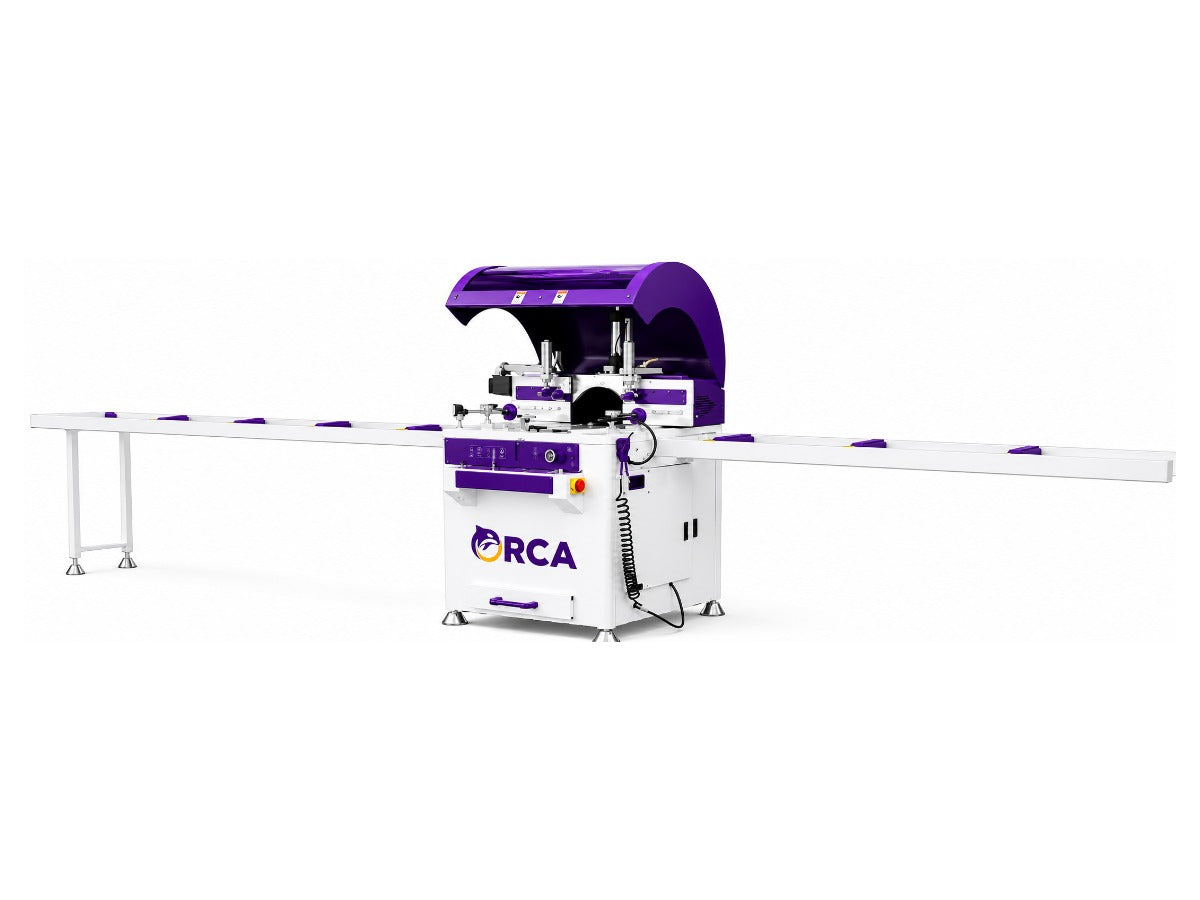

CNC single-head cutting saw
Blade diameter
Ø 550 mm
Cutting angle
45° – 90°
Cutting height
up to 200 mm
