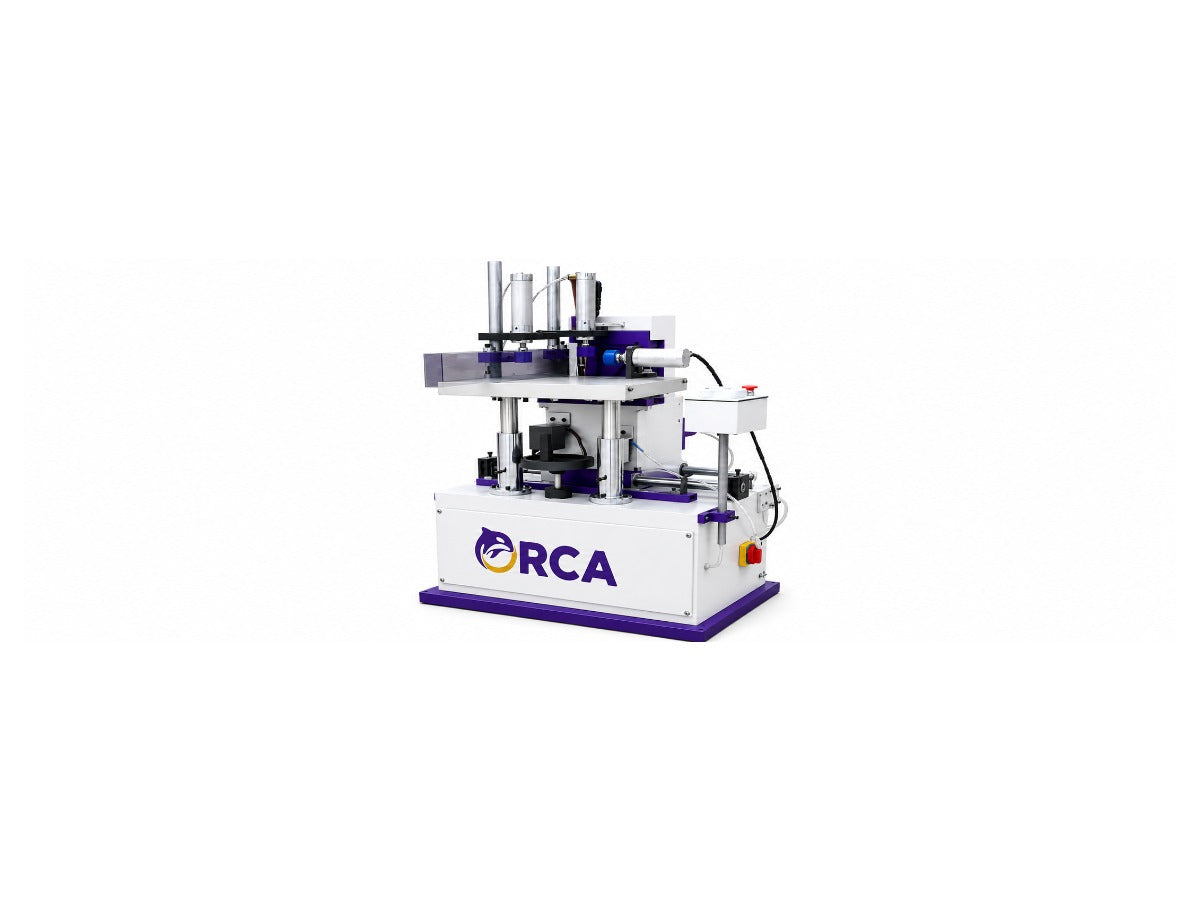

Profile end milling machine
Copies the mullion end profile so transoms seat flush against the frame. Tooling changes with the profile system.
Spindles
Specification
| Spindles | Three |
|---|---|
| Milling width | 180 mm |
| Milling depth | 150 mm |
| Spindle speed | 2800 rpm |
| Clamping | Pneumatic, double |
| Tooling | Per profile system |
